This document describes a reverse blocking thyristor designed for high volume, low cost, industrial and consumer applications such as motor control, process control, temperature, light and speed control. The device features small size, passivated die for reliability and uniformity, low level triggering and holding characteristics.

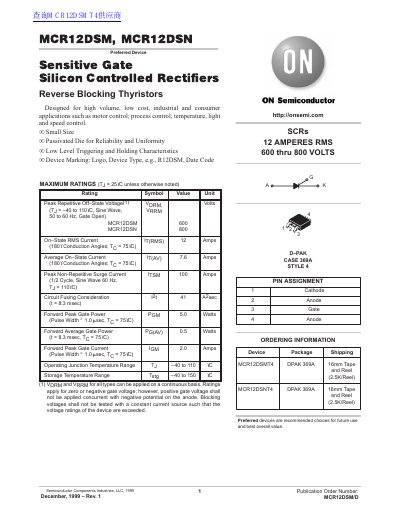

The document provides technical data for the MCR12DSM and MCR12DSN reverse blocking thyristors, which are designed for high-volume, low-cost industrial and consumer applications such as motor control, process control, and temperature regulation. It covers maximum ratings, thermal characteristics, electrical characteristics, and dynamic performance parameters.
| Peak Repetitive Off-State Voltage | 600 Volts (MCR12DSM) / 800 Volts (MCR12DSN) |
|---|---|
| On-State RMS Current | 12 Amps |
| Average On-State Current | 7.6 Amps |
| Peak Non-Repetitive Surge Current | 100 Amps |
| Operating Junction Temperature Range | -40 to 110 °C |
| Storage Temperature Range | -40 to 150 °C |
They are designed for high volume, low cost, industrial and consumer applications such as motor control, process control, temperature, light, and speed control.
The devices are available in a DPAK package, specifically Case 369A Style 4.
