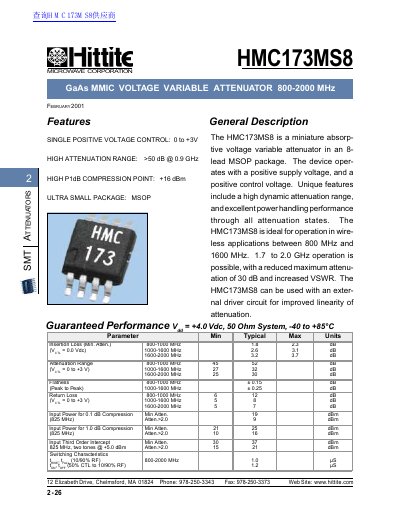

Hittite Corporation released the HMC173MS8 miniature absorptive voltage variable attenuator datasheet, which is packaged in an 8-lead MSOP package and operates with a positive supply voltage and a positive control voltage. It features a high dynamic attenuation range and excellent power handling performance, and is ideal for operation in wireless applications between 800 MHz and 1600 MHz.
The HMC173MS8 is a miniature absorptive voltage variable attenuator designed for wireless applications between 800 MHz and 1600 MHz. It operates with a positive supply voltage and a positive control voltage, offering a high dynamic attenuation range and excellent power handling performance. The device is housed in an 8-lead MSOP package.
| Frequency Range | 800-2000 MHz |
|---|---|
| Operating Temperature | -40 to +85 deg.C |
| Storage Temperature | -65 to +150 deg.C |
| Control Voltage Range | 0 to +3 V |
| Maximum Input Power (Min Attenuation) | +29 dBm |
| Attenuation Range (800-1000 MHz) | 45 to 52 dB |
The device operates between 800 MHz and 1600 MHz, with 1.7 to 2.0 GHz operation possible with reduced maximum attenuation.
The operating temperature range is -40 to +85 degrees Celsius.
