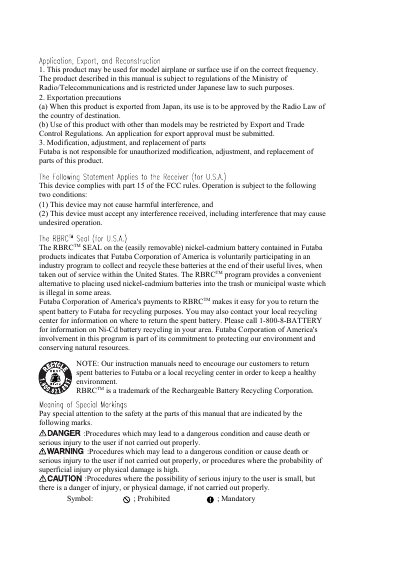

This product may be used for model airplane or surface use if on the correct frequency. The product described in this manual is subject to regulations of the Ministry of Radio/Telecommunications and is restricted under Japanese law to such purposes.
This manual provides comprehensive instructions for the Futaba T6XAs/T6XHs transmitter system, which supports both FM/PPM and PCM modulation. It details the use of compatible receivers (R127DF/R116FB for FM; R138DP/R148DP for PCM) and S3003 servos. The guide covers safety precautions, battery charging, and stick adjustments before moving into specific programming.
| Channels | 6 channels |
|---|---|
| Operating System | PCM1024 system |
| Power Supply (Transmitter) | 9.6V Ni-Cd battery |
| Current Drain (Transmitter) | 250mA |
| Power Requirement (Receiver R127DF) | 4.8V or 6V Ni-Cd battery |
| Output Torque (Servo S3003) | 44.4oz-in (3.2kg-cm) |
| Operating Speed (Servo S3003) | 0.23sec/60° |
The transmitter supports 29, 35, 36, 40, 41, 50, 60 or 72 Mhz bands.
The system includes R127DF or R116FB for FM, and R138DP or R148DP for PCM.
The NR-4J battery has a capacity of 500mAH, while the heli version NR-4RB has 1,000mAH.
