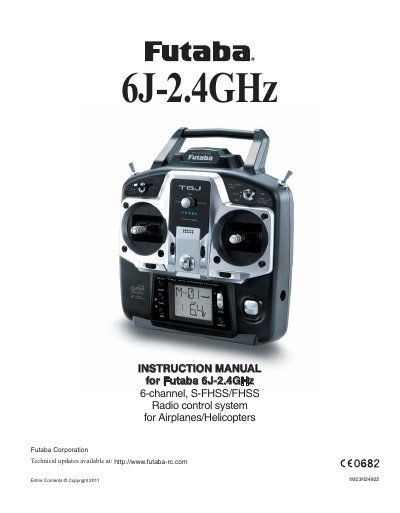

This manual provides instructions for the Futaba 6J-2.4GHz 6-channel S-FHSS/FHSS radio control system designed for airplanes and helicopters. It covers system introduction, transmitter and receiver controls, installation procedures, and battery charging for NiCd/NiMH batteries. The document includes detailed guidance on operating the Liquid Crystal Display (LCD) and programming various functions specific to both ACRO (airplane) and HELI (helicopter) modes.
| Channels | 6-Channel |
|---|---|
| Frequency Band | 2.4GHz |
| Operating System | 2-stick, 6-channel system |
| Power Supply | 4-AA 1.2V Dry Cell batteries; 4.8V total |
| Current Drain (Transmitter) | 120mA |
| Current Drain (Receiver) | 80mA (at no signal) |
| Receiver Size | 1.70 x 0.98 x 0.35 inches |
| Receiver Weight | 0.30 Ounces (8.5 grams) |
The operating system is a 2-stick, 6-channel system.
The transmitter requires 4-AA 1.2V Dry Cell batteries for a total of 4.8V.
The receiver has a current drain of 80mA when there is no signal.
