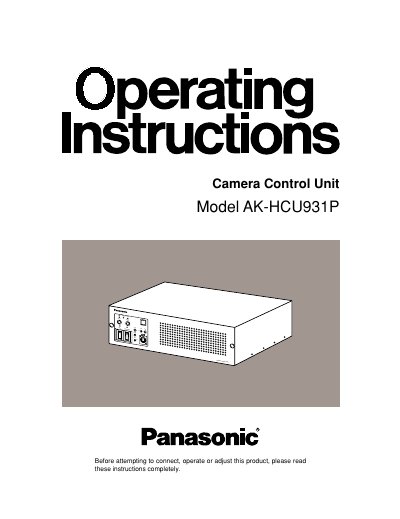

Panasonic AK-HCU931P Camera Control Unit Operating Instructions

About this manual

This document provides operating instructions for the Panasonic AK-HCU931P Camera Control Unit (CCU). The unit is designed to connect with multi-format cameras (such as model AK-HC931P) to input and output images. It connects to a Remote Operation Panel (ROP) and Master Setup Unit (MSU) using dedicated cables, allowing for operation distances of up to 50 meters.

What's inside

• Safety precautions
• Overview
• Accessories
• Operating precautions
• Parts and their functions
• Connections

Frequently asked questions

What is the maximum distance between the Camera Control Unit and the Remote Operation Panel?

The distance can be extended up to 50 meters when the designated multi-purpose cables are used.

What is the recommended operating temperature range for the unit?

The unit must be operated within a temperature range of 32°F to 104°F (0°C to + 40°C).

What is the voltage rating for the AC power connection?

The AC power connection uses 240 V live and neutral wires.
