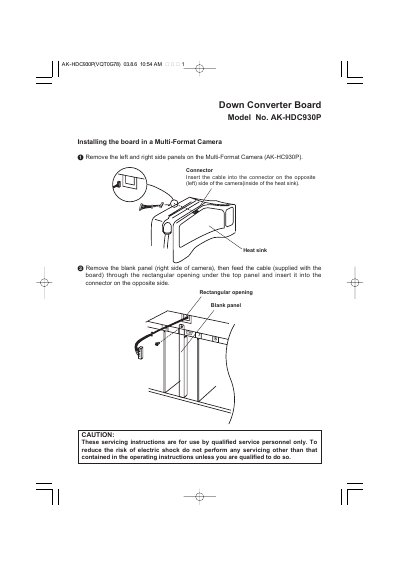

Panasonic AK-HDC930P Down Converter Board Installation Guide

This document describes the steps to install the Down Converter Board in the Multi-Format Camera (AK-HC930P).

Brand: Panasonic
Category: Other Electronics
Document type: Installation Guide
Language: English
Pages: 2
File format: PDF
File size: 21 KB
Published: 09 August, 2012
Updated: 28 September, 2023
MD5 checksum: 3C0F28C3C01513697A71585E18721683
PDF: Panasonic AK-HDC930P Down Converter Board Installation Guide PDF

About this manual

This document provides installation instructions for the Down Converter Board, Model No. AK-HDC930P. It details the steps for removing side panels on a Multi-Format Camera and routing the supplied cable through the heat sink area to the connector on the opposite side of the camera.

What's inside

Installing the board
Removing side panels
Connector installation
Heat sink routing
Circuit board insertion

Frequently asked questions

Where on the camera circuit board should the board be inserted?

The board must be inserted into slot 6 of the camera's circuit board.

What safety restriction applies to performing the installation?

These servicing instructions are for use by qualified service personnel only.
