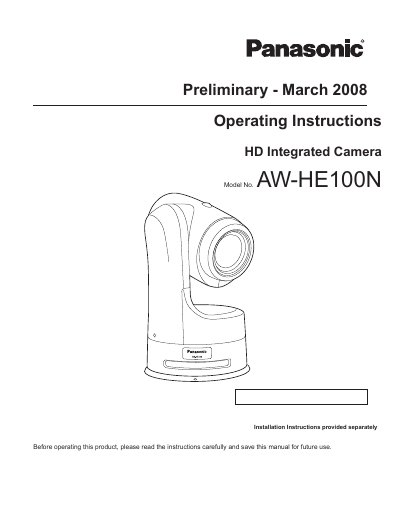

Panasonic AW-HE100N HD Integrated Camera Operating Instructions

This document is the operating instructions for the HD Integrated Camera AW-HE100N, including installation instructions and safety precautions.

Brand: Panasonic
Category: Video Player
Document type: User Manual
Language: English
Pages: 63
File format: PDF
File size: 1.7 MB
Published: 09 August, 2012
Updated: 28 September, 2023
MD5 checksum: 09546D3AC1F5E3E1148C474D4BC18F60
PDF: Panasonic AW-HE100N HD Integrated Camera Operating Instructions PDF

About this manual

This manual provides operating instructions for the Panasonic AW-HE100N, a multi-format HD integrated camera that combines a pan-tilt head, zoom lens, and camera body. The unit supports multiple video formats including 1080i, 720p, and 480i, and features three 1/3" CCD imaging sensors with a high-performance 13x zoom lens.

What's inside

Safety precautions
Accessories
Overview
Characteristics
Installation precautions
Operating precautions
Basic shooting operations
Manual shooting
White balance adjustment
Specifications

Specifications

A/D Converter	14-bit analog-to-digital converter
DSP Processor	19-bit processing DSP
Panning Range	More than ±175°
Standstill Accuracy	Max. 3' (0.05°)

Frequently asked questions

Can the camera aspect ratio be changed?

Yes, with the SD format, either 16:9 or 4:3 can be selected as the aspect ratio.

How many units can be operated by one controller?

Up to five units and devices can be operated using a compatible Panasonic controller.
