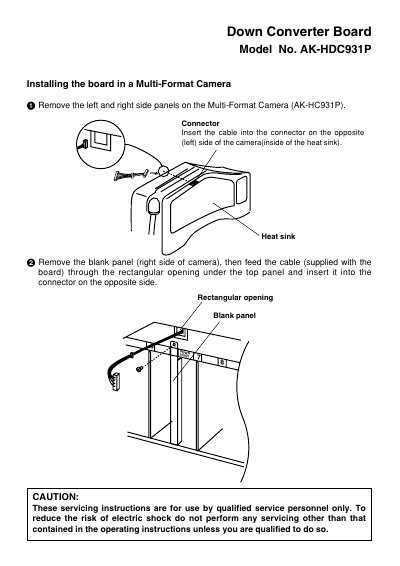

This document describes the installation process of the board in a Multi-Format Camera (AK-HC931P), including removing side panels, installing connectors, and the down converter board.
This document provides installation instructions for the Panasonic AK-HDC931P Down Converter Board. It details the removal of side panels on the Multi-Format Camera (AK-HC931P) and the routing of cables through the heat sink and top panel openings to connect to the board's connector.
The board must be inserted into slot 6 of the camera's circuit board.
