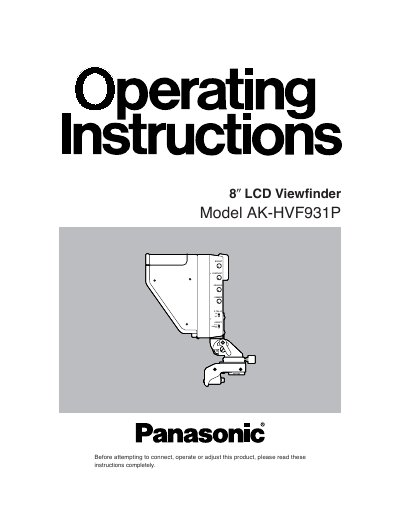

This document is an instruction manual for the AK-HVF931P model. The product is an 8-inch LCD viewfinder with features such as brightness, contrast, peaking, and dimmer. It supports 16:9 and 4:3 aspect ratios and can be operated using a remote control. It also has a tilt lock function. Users should be cautious of electric shock and avoid exposing the equipment to rain or moisture. The product complies with Canadian and US regulations.
The Panasonic AK-HVF931P is an 8-inch LCD viewfinder designed for use with the AK-HC931P multi-format camera. It features a front tally lamp, brightness and contrast controls, and peaking adjustment functions. The device operates on DC +12V supplied from the camera and supports aspect ratio switching between 16:9 and 4:3.
| Screen Size | 8-inch LCD |
|---|---|
| Power Supply | DC +12 V |
| Power Consumption | 15 W |
| Operating Temperature | 32°F to 104°F (0°C to +40°C) |
| Dimensions | 8-7/16(W)x 10-1/8(H) x8-3/8(D) inch |
| Weight | Approx. 4.1 lbs |
The viewfinder should be operated within a temperature range of 32°F to 104°F (0°C to +40°C).
Yes, the aspect ratio can be switched from 16:9 to 4:3 using the Aspect ratio selector switch.
The front tally lamp lights up when a red tally signal is input.
