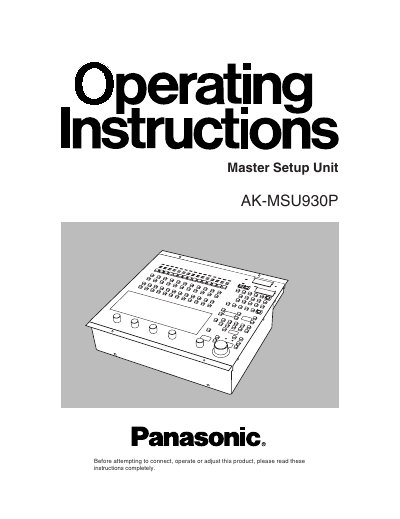

Panasonic AK-MSU930P Master Setup Unit User Manual

About this manual

The Panasonic AK-MSU930P is a master setup unit designed to control multi-format cameras (AK-HC931P) and camera control units (AK-HCU931P). It utilizes a dedicated multi-cable for connection with the remote operation panel. The unit features an alarm LED system to indicate optical transmission issues, fan status, or power supply problems, as well as tally LEDs aligned in numerical order of camera numbers.

What's inside

• Safety precautions
• Accessories
• Operating precautions
• Parts and their functions
• MSU operation panel
• Alarm LEDs
• Tally LEDs
• Camera selector switches
• MODE ON/OFF switches

Frequently asked questions

What cameras is the AK-MSU930P compatible with?

This master setup unit is used to control the multi-format cameras (AK-HC931P) and the camera control units (AK-HCU931P).

What AC adapter should be used for power?

You must use the AW-PS505 dedicated AC adapter for the MSU's power supply.

What is the recommended operating temperature range?

The unit should be operated within a temperature range of 32 °F to 104 °F (0 °C to 40 °C).
