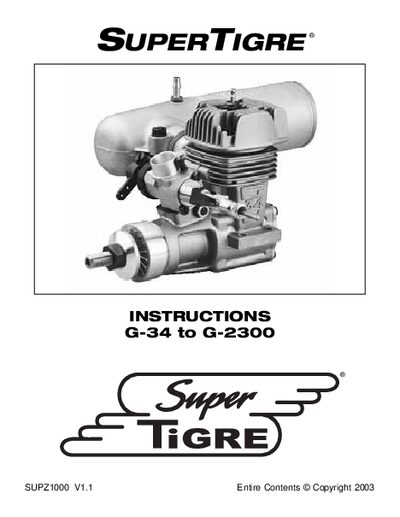

This document provides instructions for operating SUPERTIGRE engines, including the basic engine parts, features, and performance. SUPERTIGRE engines are known for their outstanding performance and high quality, and have been widely used in competitions around the world.
This manual covers all aspects of using the SuperTigre G-34 to G-2300 model engines, including detailed descriptions of engine components, carburetor parts, and mounting procedures. It also includes safety guidelines, fuel handling advice, and a data log for recording engine performance.
Key sections include instructions for carburetor and engine installation, muffler and pressure line setup, fuel line routing, and repair information with contact details for service. The document ends with a printable engine data log for tracking usage and maintenance.
| Engine Size (small) | .34‑.51 |
|---|---|
| Mounting Screw Size (small) | 4‑40 |
| Drill Size (small) | 7/64" |
| Engine Size (large) | .61‑G2300 |
| Mounting Screw Size (large) | 6‑32 |
| Drill Size (large) | 11/64" |
The propeller nut secures the propeller to the crankshaft.
Never use your finger to start the engine; always use a starter stick or electric starter.
Remove the screw in the side of the muffler, install the gasket washer on the pressure fitting, then screw the fitting into the muffler’s threaded hole.
