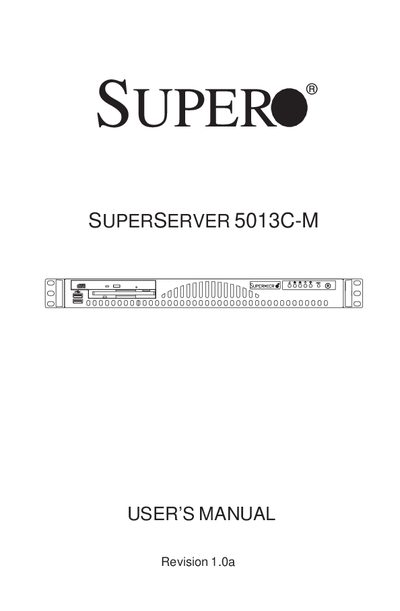

This document is the user manual of SUPERSUPERSERVER 5013C-M
This manual is intended for professional system integrators and PC technicians who install and maintain the SuperServer 5013C-M. It covers hardware overview, chassis and motherboard setup, BIOS configuration, and safety precautions.
The document includes detailed specifications such as supported processors, memory capacity, power requirements, and regulatory compliance, along with step‑by‑step installation procedures for rack mounting and component replacement.
| Processor | Single Intel Pentium 4 up to 3.40 GHz (or single Intel Celeron up to 2.40 GHz) |
|---|---|
| Chipset | Intel E7210 |
| Memory Capacity | Four DIMM slots, maximum 4 GB ECC unbuffered DDR400/333 SDRAM |
| PCI Expansion Slots | One 64‑bit 66 MHz (3.3 V) PCI‑X slot |
| Power Supply Output Power | 260 W (Model SP262‑1S, Part PWS‑0055) |
| AC Input Voltage | 100‑240 VAC |
| Operating Temperature | 10 °C to +35 °C |
The server has four DIMM slots and can accommodate up to 4 GB of ECC unbuffered DDR400/333 low‑profile SDRAM.
The power supply provides 260 W output (Model SP262‑1S) with rated voltages +3.3 V (15 A), +5 V (2.5 A), +12 V (1.8 A), -12 V (1 A), and +5Vsb (2 A).
The chassis model SC512C‑260 measures 16.7 × 1.7 × 14 in (424 × 43 × 356 mm).
