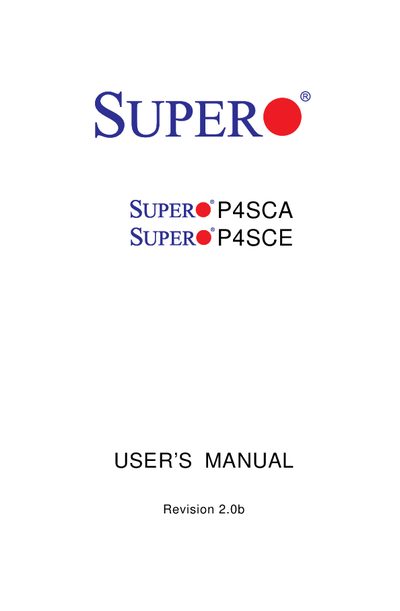

This manual provides a detailed introduction to the features and characteristics of P4SCA P4SCE products
This manual is intended for system integrators, PC technicians, and knowledgeable PC users who need to install and operate the Supermicro P4SCA/P4SCE motherboard. It covers hardware installation, connector wiring, BIOS configuration, and the use of Supermicro's management utilities.
Key sections include a checklist of items in the retail box, detailed installation steps for the CPU, memory, and power supply, BIOS setup instructions, troubleshooting procedures for video and memory errors, and an appendix with BIOS POST messages and software installation guidance for the Supero Doctor III management tool.
| Supported processors | Intel Pentium 4 or Intel Celeron up to 3.06 GHz |
|---|---|
| System bus speed | 800/533/400 MHz |
| CPU package | 478‑pin micro PGA (Plastic Grid Array) |
| Memory type | DDR memory modules |
| Chipset | Canterwood Chipset |
| RAID utility | Intel ICH5R SATA RAID Utility |
The board supports single Intel Pentium 4 or Intel Celeron processors up to 3.06 GHz.
The default username and password are both ADMIN.
It can be downloaded from Supermicro’s website at ftp://ftp.supermicro.com/utility/Supero_Doctor_lll/.
