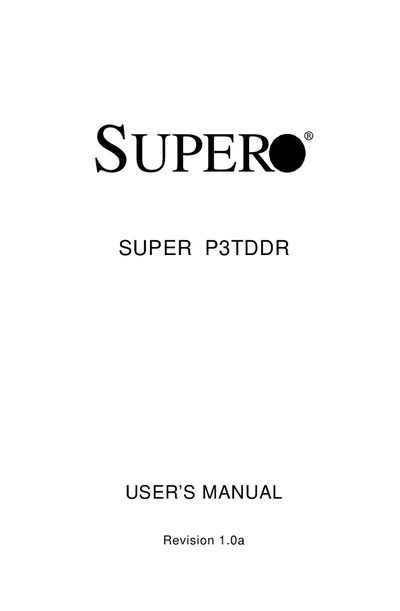

This is a Supermicro SUPER P3TDDR User's Manual, which describes the features and characteristics of the product.
This manual is intended for system integrators, PC technicians, and knowledgeable PC users who need to install, configure, and maintain the Supermicro P3TDDR motherboard. It covers hardware specifications, safety handling, connector wiring, BIOS configuration, and troubleshooting procedures.
The document is organized into four main chapters—Introduction, Installation, Troubleshooting, and AwardBIOS—followed by appendices with POST and beep code tables. Contact information for Supermicro technical support and regional offices is also provided.
| Supported processors | Single or dual Pentium III FCPGA 500 MHz‑1.26 GHz (including low‑power versions) |
|---|---|
| Front Side Bus speeds | 133 MHz, 100 MHz, 66 MHz |
| Chipset | VIA Apollo Pro 266T |
| IDE ribbon cable | ATA66/100 ribbon cable for IDE devices |
| SCSI cable | 68‑pin LVD SCSI cable (retail only) |
The board supports single or dual Pentium III FCPGA processors ranging from 500 MHz to 1.26 GHz, including low‑power versions, with Front Side Bus speeds of 133, 100, or 66 MHz.
Technical support is available via phone (+1 (408) 503‑8000 in the U.S., +31 (0) 73‑6400390 in Europe, +886‑2‑8228‑1366 ext.132 in Asia‑Pacific) and email ([email protected] or [email protected]).
