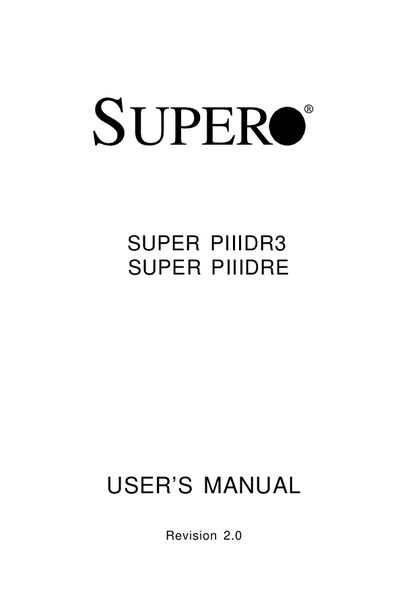

Supermicro PIIIDR3/PIIIDRE User Manual

This document is the user manual for SUPER PIIIDR3 SUPER PIIIDRE, describing the features and characteristics of the product.

Brand: Super
Category: Other Computer Accessories
Document type: User Manual
Language: English
Pages: 94
File format: PDF
File size: 745 KB
Published: 25 February, 2012
Updated: 28 September, 2023
MD5 checksum: 39899DBD9136C83595E55559F55672FE
PDF: Supermicro PIIIDR3/PIIIDRE User Manual PDF

About this manual

This manual is written for system integrators, PC technicians, and knowledgeable PC users. It covers the installation and use of the Supermicro PIIIDR3/PIIIDRE motherboard, which supports Pentium II and Pentium III processors.

The document is organized into chapters covering an introduction and specifications, installation procedures, troubleshooting steps, BIOS configuration, and appendices with BIOS error codes and POST diagnostic messages. It also points readers to Supermicro’s website for the latest version and technical support.

What's inside

Introduction and Specifications
Installation Procedures
Troubleshooting
BIOS Configuration
Appendices (Error Codes, Diagnostic Messages)
Technical Support and Updates

Specifications

Supported Processors	Pentium II 350‑450 MHz, Pentium III 450‑933 MHz (single or dual)
Chipset	840 Chipset

Frequently asked questions

What processors are supported by the SUPER PIIIDR3/PIIIDRE motherboard?

It supports single or dual Pentium II 350‑450 MHz and Pentium III 450‑933 MHz processors.

Where can I find the most up‑to‑date version of this manual?

The latest version is available on Supermicro’s website at www.supermicro.com.

What information is provided in Appendix A?

Appendix A offers information on BIOS error beep codes and messages.

What does Appendix B contain?

Appendix B contains AMIBIOS POST diagnostic error messages.
