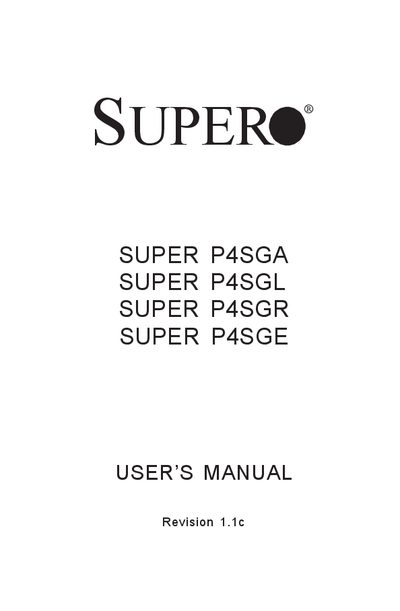

This document is a revised version of the user manual for SUPER P4SGA SUPER P4SGL SUPER P4SGR SUPER P4SGE. The manual contains detailed information and features of the product.
This manual provides system integrators, PC technicians, and experienced users with detailed information on the Supermicro P4SGA, P4SGL, P4SGR, and P4SGE motherboards. It includes an overview of features, a checklist of items included in the retail box, and specifications such as supported processors and chipset details.
The document guides users through safe handling, processor and heatsink installation, DDR memory mounting, connector wiring, BIOS configuration, and troubleshooting procedures. Appendices list POST codes, BIOS messages, and error beep codes for quick reference.
| Supported Processor | Intel Pentium 4 1.5‑3.06 GHz |
|---|---|
| System Bus Speed | 533 MHz / 400 MHz (P4SGL only 3.0 GHz/400 MHz) |
| Chipset | 845G |
