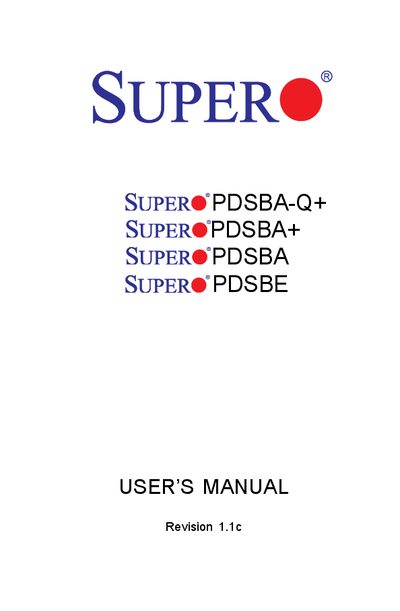

This document is the user manual for Super Micro Computer, Inc., describing the features and characteristics of the PDSBA-Q+, PDSBA+, PDSBA, and PDSBE products.
This manual is written for system integrators, PC technicians and knowledgeable users. It provides information for the installation and use of the Supermicro PDSBA-Q+/PDSBA+/PDSBA/PDSBE motherboard.
The document is organized into chapters covering features and specifications, hardware installation, BIOS configuration, troubleshooting procedures, and appendices with BIOS POST error codes and operating‑system/software installation instructions.
| Supported processors | Single Intel Quad‑core/Dual‑core Core2 Duo/E6000/E4000/Xeon 3000/Pentium D/Pentium 4/Celeron |
|---|---|
| System bus speed | 1066/800/533 MHz |
| L2 cache | up to 4 MB |
| Trusted Platform Module | Intel TPM supported |
| Enhanced Intel SpeedStep | Supported (EIST) |
| Virtualization Technology | Intel VT supported |
| SIMD extensions | SSE2, SSE3 supported |
| Execute Disable | XD Bit supported |
It supports a single Intel Quad‑core/Dual‑core Core2 Duo, E6000, E4000, Xeon 3000, Pentium D, Pentium 4 or Celeron processor.
The system bus operates at 1066 MHz, 800 MHz, or 533 MHz.
Yes, it includes an Intel Trusted Platform Module (TPM).
The manual provides BIOS POST error codes, BIOS setup instructions, and power configuration settings.
