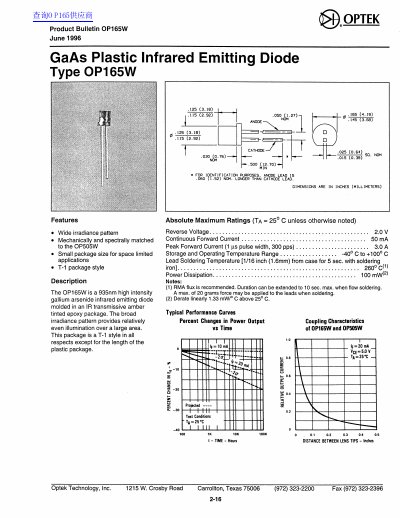

The document is a product bulletin for the Optek OP165W, a 935nm high intensity gallium arsenide infrared emitting diode. It is molded in an IR transmissive amber tinted epoxy package and is mechanically and spectrally matched to the OP505W. The device features a wide irradiance pattern providing relatively even illumination over a large area and is housed in a T-1 style package.
| Wavelength at Peak Emission | 935 nm |
|---|---|
| Forward Voltage | 1.60 V |
| Continuous Forward Current | 50 mA |
| Operating Temperature Range | -40° C to +100° C |
| Emission Angle at Half Power Points | 90 Deg. |
The package is a T-1 style in all respects except for the length of the plastic package.
Yes, it is mechanically and spectrally matched to the OP505W.
