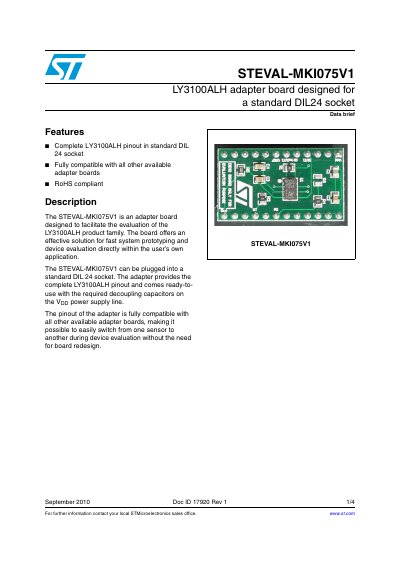

The STEVAL-MKI075V1 adapter board is designed to facilitate the evaluation of the LY3100ALH product family.
The STEVAL-MKI075V1 is an adapter board designed for the LY3100ALH product family. It features a complete pinout compatible with a standard DIL24 socket and includes required decoupling capacitors on the Vpp power supply line.
This board facilitates fast system prototyping and device evaluation within user applications. Its pinout is fully compatible with other available adapter boards, allowing for easy switching between sensors without requiring board redesign.
The board is designed to facilitate the evaluation of the LY3100ALH product family.
The adapter board can be plugged into a standard DIL 24 socket.
The adapter comes ready-to-use with the required decoupling capacitors on the Vpp power supply line.
