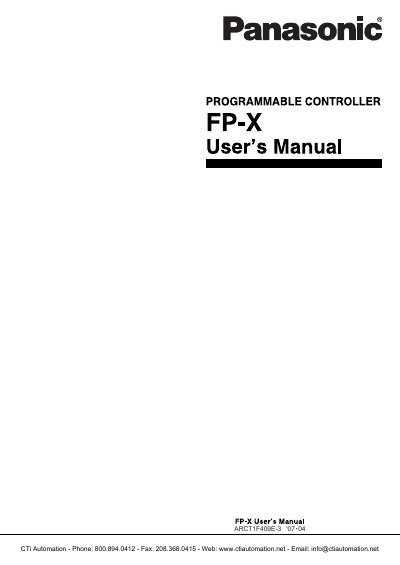

Panasonic FP-X Programmable Controller User's Manual

About this manual

This document is the User's Manual for the Panasonic FP-X Programmable Controller series. It provides comprehensive instructions for users on the features, functions, and restrictions of the control units and expansion units. The manual details the specifications for various input and output types, including relay and transistor configurations, as well as power supply requirements.

The guide covers the installation and wiring procedures for the controller and its expansion cassettes, such as the Expansion Unit and FPO Adapter. It also explains the setup and usage of programming tools, including the Tool Port and USB Port, along with the installation of necessary software like FPWIN GR. Additionally, the manual describes communication functions, including Computer Link, General-purpose Serial Communication, PC(PLC) Link, and MODBUS RTU Communication.

What's inside

• Safety Precautions
• Features and Functions
• Specifications and Functions of Control Unit
• Expansion Cassette and Expansion FPO Adapter Specifications
• I/O Allocation
• Installation and Wiring
• Tool Port and USB Port
• Communication Cassette
• Application Cassette
• High-speed Counter, Pulse Output and PWM Output Functions

Specifications

Frequently asked questions

What safety precautions should be observed when using the FP-X controller?

Users must read the manual thoroughly before use and observe safety flags like WARNING for critical situations that could lead to death or serious injury.

Can the FP-X controller be used in areas with inflammable gas?

No, the product should not be used in areas with inflammable gas as it could lead to an explosion.

What software is needed for programming the FP-X controller?

The manual mentions the installation of FPWIN GR software for communication with the controller via the USB Port.
