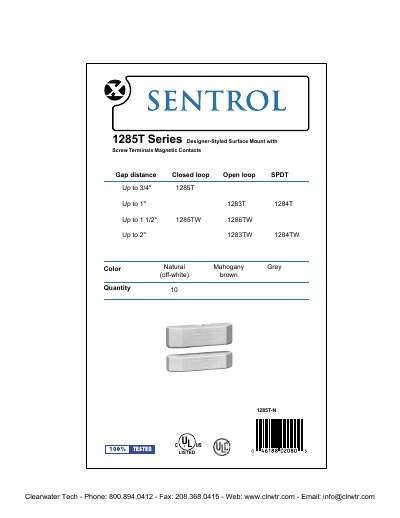

This document describes the features and characteristics of the 1285T series magnetic contacts, including closed loop and open loop configurations, gap distances, surface mount with screw terminals, colors, UL and ULC listings.
This document provides technical specifications for the Clearwater Tech 1283T series of designer-styled surface mount magnetic contact switches. The product line includes various models (1283T, 1284T, 1285T, 1286TW) with different electrical configurations such as Open N/C and Closed N/O.
| Voltage (1285T Series) | 100 VAC/DC Max |
|---|---|
| Max Current (1285T Series) | 0.5 A |
| Max Power (Other Models) | 3.0 W Max |
The maximum voltage rating for the 1283T series is 30 V.
The maximum current rating for the 1284T model is 0.25 A.
