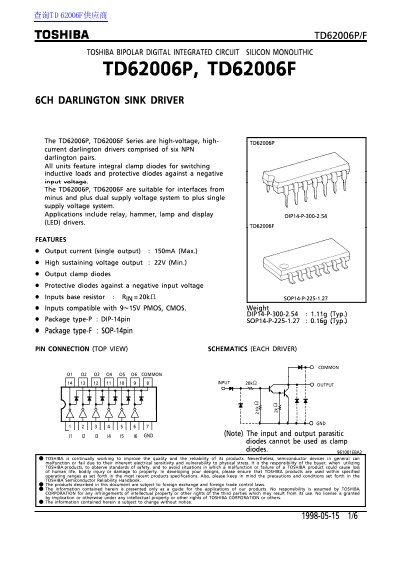

The Toshiba TD62006P/F Series consists of high-voltage, high-current Darlington drivers comprised of six NPN Darlington pairs. These integrated circuits feature integral clamp diodes for switching inductive loads and protective diodes against negative input voltage. They are designed to be suitable for interfaces ranging from dual supply voltage systems to single supply voltage systems.
| Output current (single output) | 150mA (Max.) |
|---|---|
| High sustaining voltage output | 22V (Min.) |
| Storage Temperature | -50~150 °C |
| Number of Channels | 6 |
The maximum output current per channel is 150mA.
