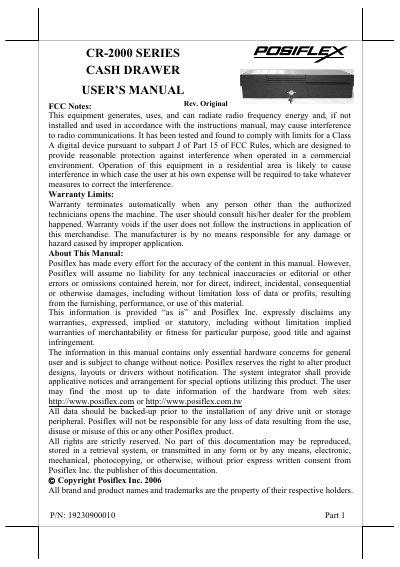

Posiflex CR-2000 Series Cash Drawer User's Manual

This document describes FCC certification information of some Posiflex products, including product models, features, operating frequencies, power, etc

Brand: POSIFLEX
Category: Office Equipment
Document type: User Manual
Language: English
Pages: 10
File format: PDF
File size: 280 KB
Published: 06 August, 2012
Updated: 30 September, 2023
MD5 checksum: 2277B89E52ECA818A695AA070566EEAF
PDF: Posiflex CR-2000 Series Cash Drawer User's Manual PDF

About this manual

This manual provides instructions for the Posiflex CR-2000 Series cash drawer, a flip-top type device featuring an aluminum alloy die-cast base and stainless steel top. It includes three-position lock security, a check slot for non-cash transactions, and six fixed bill compartments. The series is available in Ivory and Black and supports various interfaces including direct printer drive, dedicated RS232, and USB.

What's inside

Brief Introduction
Features
Model Number & Interface
Carton Contents
Installation
Coin Compartment Adjust
Jumper Setting Change
UPOS and WEPOS driver application
Specifications
Keylock Operation

Specifications

Dimensions	481.5 (W) x 174.9 (D) x 101.5 (H) mm
Power Source (Solenoid Drive)	12 to 24 VDC
Baud rate	9600; 19200
Data Bits	8
Stop Bits	1

Frequently asked questions

What are the available interface options for the CR-2000 series?

The series provides various interface selections including direct (printer) drive, dedicated RS232, and USB.

How many coin compartments does the cash drawer have?

The cash drawer has 8 coin compartments which are partially adjustable in size and number.

What is the default drawer number (PID) for the CR-2005 model?

The drawer number (PID) is default to be 7.
