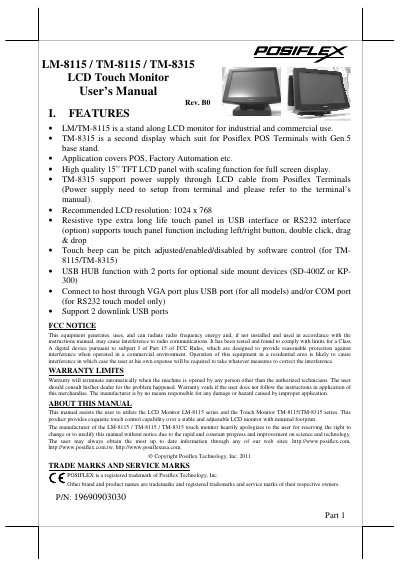

POSIFLEX M-8115 TM-8115 TM-8315 LCD Touch Monitor User Manual Rev. B0

About this manual

The document provides a user guide for the Posiflex LM/TM-8115 and TM-8315 series of industrial and commercial LCD touch monitors. It details features such as the high-quality 15-inch TFT panel, resistive touch capabilities via USB or RS232 interfaces, and connectivity options including VGA and USB hubs.

The guide includes step-by-step instructions for hardware installation, connecting cables to the base stand, and mounting options like side kits (SD-400Z) or wall mounts. It also explains how to install drivers on Windows and Linux systems and configure the touch panel using the Posiflex USB Touch Manager utility. This manual is written in Chinese.

What's inside

• Features
• Carton Contents
• Installation Guide
• Parts Identification
• Input/Output Ports
• Hardware Installation
• Driver Installation
• Mouse Emulation

Frequently asked questions

Does the TM-8315 require a separate power supply?

No, it supports power supply through the LCD cable from Posiflex Terminals.

What is the recommended resolution for these monitors?

The recommended LCD resolution is 1024 x 768.

Do I need special drivers for the USB touch controller?

No, it operates as a standard USB mouse without needing special drivers in Windows.
