Posiflex TM-7115/TM-7115N LCD Touch Monitor User's Manual Rev. B0

The TM-7115/7115N industrial LCD monitor is a part of the Delta industrial monitoring device series. It is a 15-inch multi-functional monitor with dustproof and waterproof features, and tilt adjustment function, which can meet the needs of various industrial and commercial application scenarios.

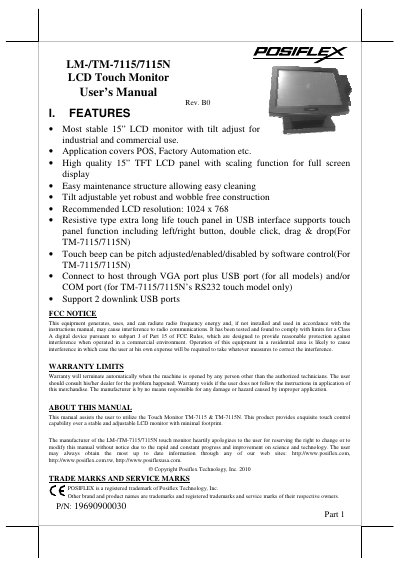

Posiflex TM-7115/TM-7115N LCD Touch Monitor User's Manual Rev. B0 - cover page
Brand
POSIFLEX
Category
Monitor
Document type
User Manual
Language
English
Pages
12
File format
PDF
File size
1.9 MB
Published
06 August, 2012
Updated
01 October, 2023
MD5 checksum
A207A624D7CE323C914BF647A94FCF0E

About this manual

The Posiflex TM-7115 and TM-7115N are stable 15-inch LCD monitors designed for industrial and commercial applications such as POS systems and factory automation. The units feature a high-quality TFT LCD panel with scaling capabilities and a robust, tilt-adjustable construction to ensure wobble-free operation.

What's inside

  • Features
  • Carton Contents
  • Parts Identification
  • Input/Output Ports
  • Hardware Installation
  • Driver Installation
  • Setup/Calibration

Specifications

Screen Size15 inches
Recommended Resolution1024 x 768
Touch Panel TypeResistive type extra long life touch panel in USB interface
Power Input12 V DC

Frequently asked questions

Does the touch monitor require special drivers for Windows?

No, the USB interface touch controller operates as a USB mouse without need for any special driver in Windows.

What are the available connection ports?

All models connect via VGA and USB ports, while TM-7115/7115N RS232 touch models also support a COM port.
