This manual is the instruction manual of Posiflex RS3800 series products.

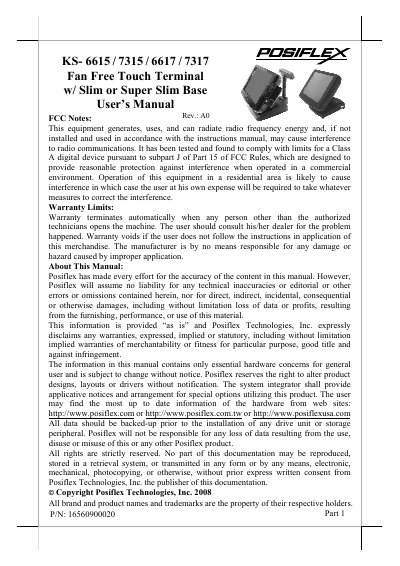

This User's Manual provides instructions for the POSIFLEX KS-6615, KS-7315, KS-6617, and KS-7317 Fan Free Touch Terminals. It includes product pictures, parts identification, and detailed installation guides for both Gen 5 Slim and Gen 6 Super Slim base models. The document also outlines warranty limits and safety precautions regarding battery disposal and system maintenance.
| Applicable CPU (KS-6615) | Intel Celeron M 1.0 GHz |
|---|---|
| Applicable CPU (KS-6615 / 6617) | Intel Celeron M 1.5 GHz |
| Applicable CPU (KS-7315 / 7317) | Intel Celeron M 1.86 GHz or Core Duo 2.0 GHz or Core 2 Duo 2.16 GHz |
| Data storage device | SATA HDD 2.5" 40 GB in base stand or SATA HDD 2.5" 40 GB in main unit or CF card |
| Touch panel durability | 35 million touches min. |
| LCD panel size (KS-6615 / 7315) | 15" TFT active matrix LCD panel |
| LCD panel size (KS-6617 / 7317) | 17" TFT active matrix LCD panel |
| Tilt angle adjust | 15° to 70° |
| USB ports | 4 standard USB ports in I/O area plus 2 in side cover |
| LAN port | Ethernet 100/1000 Base T |
The warranty terminates automatically when any person other than the authorized technicians opens the machine.
Do not use Acryl dissolving solvent or Polycarbonate dissolving solvent on the screen.
Always fully recharge the battery at least once every 3 months if the battery is not connected.
