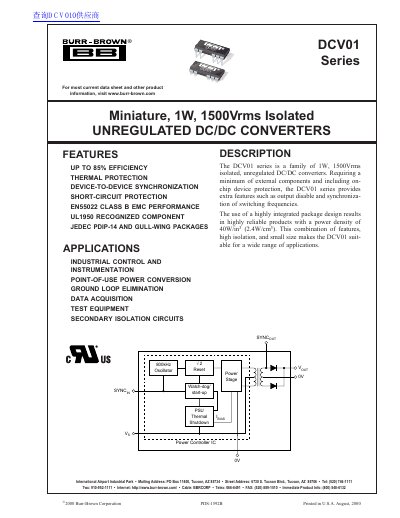

The DCV01 series is a family of 1W, 1500Vrms isolated, unregulated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCV01 series provides extra features such as output disable and synchroniza- tion of switching frequencies.
The DCV01 series is a family of miniature, 1W, 1500Vrms isolated, unregulated DC/DC converters designed for industrial control, instrumentation, and data acquisition applications. The series features high efficiency up to 85%, thermal protection, short-circuit protection, and device-to-device synchronization capabilities.
| Power | 1W |
|---|---|
| Isolation Voltage | 1500Vrms |
| Efficiency | Up to 85% |
| Operating Temperature | -40 to +85 °C |
| Switching Frequency | 800 kHz |
| Package Types | PDIP-14 and Gull-Wing |
The DCV01 series is suitable for industrial control and instrumentation, point-of-use power conversion, ground loop elimination, and data acquisition.
The converters provide a maximum power output of 1W.
The devices can operate at temperatures up to +85°C.
The thermal shutdown activates when the IC temperature reaches 150°C.
