MPC508A and MPC509A are single-ended 8-channel/differential 4-channel CMOS analog multiplexers fabricated by BURR-BROWN and available in plastic DIP and plastic SOIC packages.

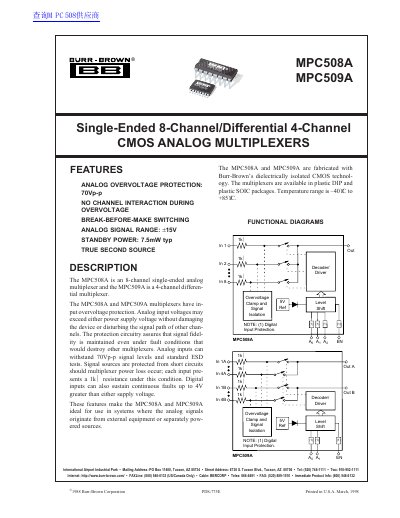

This document provides functional diagrams and technical specifications for the Burr-Brown MPC508A and MPC509A analog multiplexers. The MPC508A is an 8-channel single-ended device, while the MPC509A is a 4-channel differential multiplexer. Both devices are fabricated with dielectrically isolated CMOS technology and are available in plastic DIP and SOIC packages.
| Analog Signal Range | +15V |
|---|---|
| Standby Power | 7.5mW typ |
| Operating Temperature Range | -40°C to +85°C |
| Break-Before-Make Delay | 25 ns |
| Settling Time (0.1%) | 1.2 µs |
The devices operate within a temperature range of -40°C to +85°C.
Typical standby power consumption is 7.5mW.
