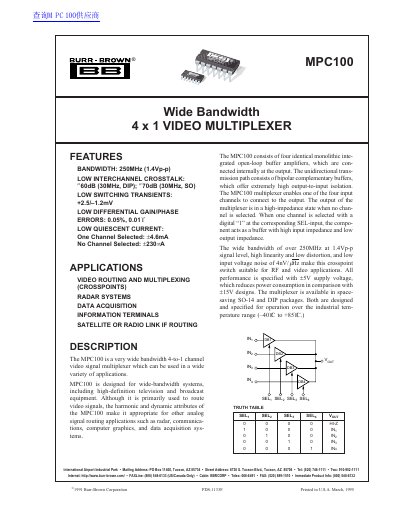

The MPC100 is a wide bandwidth 4x1 video multiplexer with features like high bandwidth, low interchannel crosstalk, low switching transients, and low differential gain/phase errors, suitable for RF and video applications.
The MPC100 is designed for wide-bandwidth systems including high-definition television and broadcast equipment. It consists of four identical monolithic integrated open-loop buffer amplifiers connected internally at the output, offering extremely high output-to-input isolation via a unidirectional transmission path.
Key features include a bandwidth of 250MHz (at 1.4Vp-p), low interchannel crosstalk, and low switching transients. The device is available in space-saving SO-14 and DIP packages and is specified for operation over the industrial temperature range of -40°C to +85°C.
| Bandwidth (1.4Vp-p) | 250MHz |
|---|---|
| Interchannel Crosstalk (30MHz, DIP) | <60dB |
| Quiescent Current (One Channel Selected) | +4.6mA |
| Small Signal Bandwidth (Vo = 0.2Vp-p) | 450 MHz |
The wide bandwidth of the MPC100 is over 250MHz at a 1.4Vp-p signal level.
