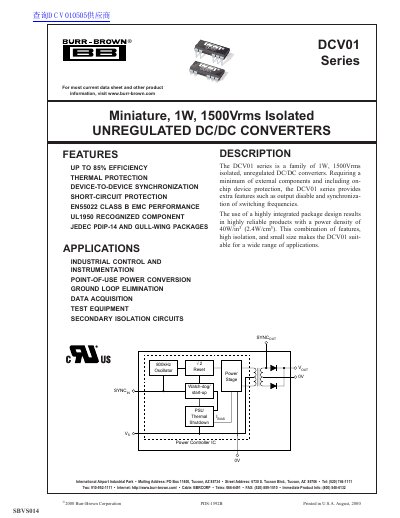

The DCV01 series is a family of 1W, 1500Vrms isolated, unregulated DC/DC converters. Requiring a minimum of external components and including on- chip device protection, the DCV01 series provides extra features such as output disable and synchroniza- tion of switching frequencies. The use of a highly integrated package design results in highly reliable products with a power density of 40W/in3 (2.4W/cm3). This combination of features, high isolation, and small size makes the DCV01 suit- able for a wide range of applications.
The DCV01 series is a family of 1W, 1500Vrms isolated, unregulated DC/DC converters designed for industrial control, instrumentation, and data acquisition. These devices require a minimum of external components and include on-chip protection features such as thermal shutdown, short-circuit protection, and device-to-device synchronization.
| Power | 0.97 W |
|---|---|
| Operating Temperature | -40 to +85 °C |
| Oscillator Frequency | 800 kHz |
| Efficiency | Up to 85% |
The DCV01 series offers up to 85% efficiency.
The converters have an isolation voltage of 1500Vrms.
The series includes models for 5V, 15V, and 24V input voltages.
