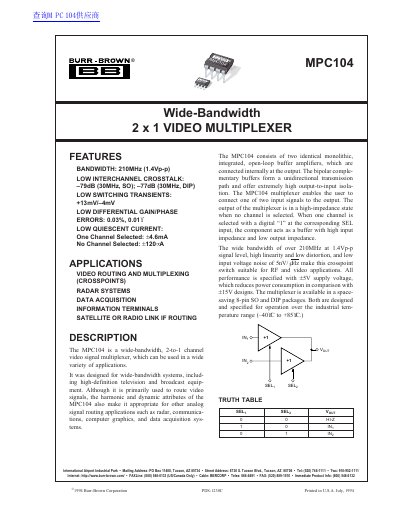

Burr-Brown MPC104 Wide-Bandwidth 2x1 Video Multiplexer Datasheet

This file introduces the features of MPC104 switch, including bandwidth, interchannel crosstalk, switching transients, distortion, quiescent current, applications, etc.

Brand: BB
Document type: Datasheet
Language: English
Pages: 15
File format: PDF
File size: 234 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9D3DCDEE7342F71FBE5E893420CDCDF6
PDF: Burr-Brown MPC104 Wide-Bandwidth 2x1 Video Multiplexer Datasheet PDF

About this manual

The MPC104 is a wide-bandwidth, 2-to-1 channel video signal multiplexer designed for high-definition television and broadcast equipment. It consists of two identical monolithic integrated open-loop buffer amplifiers connected internally at the output to form a unidirectional transmission path with high isolation.

What's inside

Features
Applications
Description
Specifications-DC Characteristics
Specifications-AC Characteristics
Connection Diagram
Absolute Maximum Ratings
Typical Performance Curves

Specifications

Bandwidth (1.4Vp-p)	210MHz
Low Interchannel Crosstalk	-79dB at 30MHz
Quiescent Current (One Channel)	+4.6mA

Frequently asked questions

What supply voltage does the MPC104 require?

The multiplexer is specified for operation with a +5V supply voltage.

What is the maximum bandwidth of the MPC104 at a 1.4Vp-p signal level?

The wide-bandwidth capability reaches over 210MHz when operating with a 1.4Vp-p signal level.

What is the quiescent current consumption when no channel is selected?

The device draws approximately 120 microamperes of quiescent current when no channel is selected.
