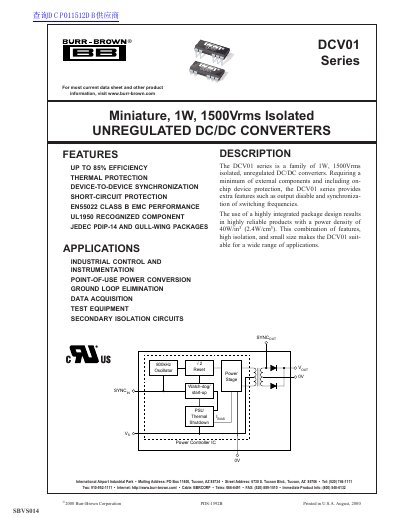

BB DCV01 series Miniature 1W 1500Vrms Isolated UNREGULATED DC/DC CONVERTERS handbook
The DCV01 series is a family of 1W, 1500Vrms isolated, unregulated DC/DC converters designed for industrial control, instrumentation, and data acquisition applications. These devices require a minimum of external components and include on-chip protections such as thermal shutdown and short-circuit protection.
Read onlineBB DCV01 specifications
| Power | 0.97 W (100% Full Load) |
|---|---|
| Isolation Voltage | 1500 Vrms |
| Operating Temperature Range | -40 to +85 °C |
| Efficiency (Typical) | Up to 85% |
| Oscillator Frequency | 800 kHz |
Source: BB DCV01 series Miniature 1W 1500Vrms Isolated UNREGULATED DC/DC CONVERTERS handbook
All BB DCV01 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum power output of these converters?
The DCV01 Series provides a maximum output power of 1W.
From: BB DCV01 series Miniature 1W 1500Vrms Isolated UNREGULATED DC/DC CONVERTERS handbook
How does this device protect itself from overheating?
The converter includes thermal protection that shuts down the IC at 150 °C.
From: BB DCV01 series Miniature 1W 1500Vrms Isolated UNREGULATED DC/DC CONVERTERS handbook
What are the main applications for the DCV01 series?
The DCV01 series is suitable for industrial control and instrumentation, point-of-use power conversion, ground loop elimination, and data acquisition.
From: BB DCV01 series Miniature 1W 1500Vrms Isolated UNREGULATED DC/DC CONVERTERS handbook(2)
What is the maximum power output of the DCV01 series converters?
The converters provide a maximum power output of 1W.
From: BB DCV01 series Miniature 1W 1500Vrms Isolated UNREGULATED DC/DC CONVERTERS handbook(2)
What is the maximum efficiency of the DCV01 series?
The DCV01 series offers up to 85% efficiency.
From: BB DCV01 series Miniature 1W 1500Vrms Isolated UNREGULATED DC/DC CONVERTERS handbook(1)
What is the isolation voltage rating?
The converters have an isolation voltage of 1500Vrms.
From: BB DCV01 series Miniature 1W 1500Vrms Isolated UNREGULATED DC/DC CONVERTERS handbook(1)
