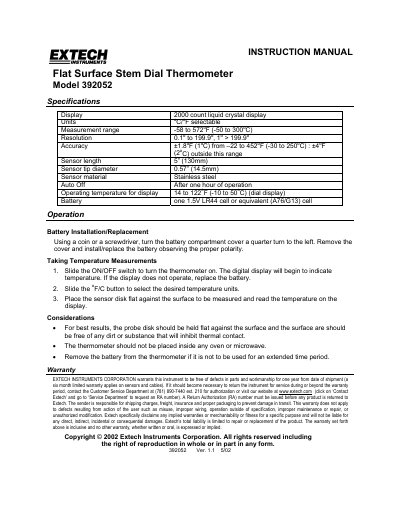

This document is an instruction manual for the Flat Surface Stem Dial Thermometer Model 392052. It provides specifications and instructions for use of the product. The thermometer features a 2000 count liquid crystal display, selectable units of oC/oF, a measurement range of -58 to 572oF (-50 to 300oC), a resolution of 0.1o to 199.9o and 1o > 199.9o, and an accuracy of ±1.8oF (1oC) from –22 to 452oF (-30 to 250oC) and ±4oF (2oC) outside this range. The sensor has a length of 5 inches (130mm) and a tip diameter of 0.57 inches (14.5mm), made of stainless steel. The thermometer has an auto-off function and operates in temperatures of 14 to 122oF (-10 to 50oC).
This document is an instruction manual for the Extech Model 392052 Flat Surface Stem Dial Thermometer. The device features a liquid crystal display with selectable units (°C/°F) and measures temperatures from -58 to 572°F (-50 to 300°C). It utilizes a stainless steel sensor with an 8-inch length.
| Display | 2000 count liquid crystal display |
|---|---|
| Units | °C/F selectable |
| Measurement range | -58 to 572°F (-50 to 300°C) |
| Resolution | 0.1° to 199.9°, 1° > 199.9° |
| Accuracy | +1.8°F (1°C) from —22 to 452°F (-30 to 250°C) |
| Sensor length | 8” (130mm) |
| Battery | one 1.5V LR44 cell or equivalent (A76/G13) cell |
Turn the battery compartment cover a quarter turn to the left, remove it, and install the new battery observing proper polarity.
Turn on the thermometer using the ON/OFF switch, select units with the °F/C button, and place the sensor disk flat against the surface.
The instrument is warranted for one year from date of shipment, with a six-month limited warranty applying to sensors and cables.
