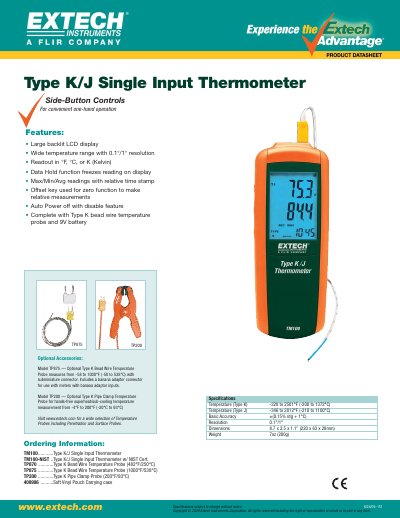

This file introduces the features and specifications of the TM100 temperature meter produced by Extech Instruments Corporation. The temperature meter features a backlit LCD display, a wide temperature range of -328 to 2501 degrees Fahrenheit (-200 to 1372 degrees Celsius), a resolution of 0.1 degrees Fahrenheit/1 degree Celsius, and the ability to display temperatures in Fahrenheit, Celsius, or Kelvin. The meter also features a data hold function, maximum/minimum/average readings, and a relative time stamp.
This document provides ordering information for the Extech TM100 Type K/J Single Input Thermometer. It lists the base unit (TM100-NIST) and various optional temperature probes, such as the Type K bead wire probe (TP870, TP875) and the Type K pipe clamp probe (TP200).
| Temperature Range (Type K) | -328 to 2501°F (-200 to 1372°C) |
|---|---|
| Temperature Range (Type J) | -346 to 2012°F (-210 to 1100°C) |
| Basic Accuracy | ±(0.15% rdg + 1°C) |
| Resolution | 0.1°/1° |
| Dimensions | 8.7 x 2.5 x 1.1" (220 x 63 x 28mm) |
| Weight | 7oz (200g) |
The Type K probe measures temperatures from -328 to 2501°F (-200 to 1372°C).
The Type J probe measures temperatures from -346 to 2012°F (-210 to 1100°C).
The basic accuracy is ±(0.15% rdg + 1°C).
