Extech 382275 / 382276 600W Single Output Laboratory Grade DC Power Supply is a 0 to 30V, 20A adjustable output switching mode power supply with remote control for output Voltage/Current and On/Off, two user-defined Voltage and Current presets and one 13.8V/20A factory preset, automatic Constant Current and Constant Voltage crossover, dual 3-Digit LED displays, high RFI immunity and excellent EMI, Thermostatic Control Fan from zero to full speed, over voltage, over-temperature, and short circuit protection, low profile and small footprint, and complete with power cord.

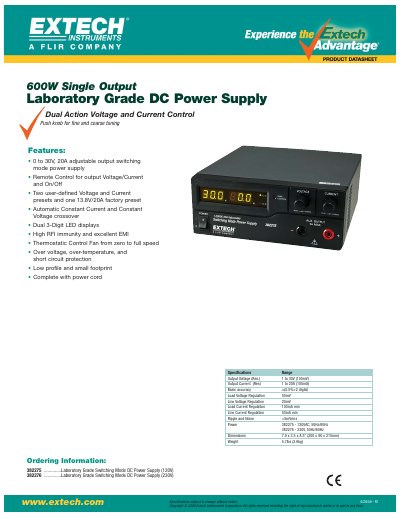

This document is a datasheet for the Extech 382275, a 600W single output laboratory grade switching mode DC power supply. It supports an adjustable output range of 0 to 30V and 1 to 20A.
| Output Voltage Range | 0 to 30V |
|---|---|
| Output Current Range | 1 to 20A |
| Power | 600W |
| Load Voltage Regulation | 50mV |
| Line Voltage Regulation | 20mV |
| Basic Accuracy | ±(0.5%+2 digits) |
| Ripple and Noise | <5mVrms |
| Dimensions | 7.9 x 3.5 x 8.5" (200 x 90 x 215mm) |
| Weight | 5.7lbs (2.6kg) |
The unit provides an adjustable output of up to 30V at 20A.
The device measures 7.9 x 3.5 x 8.5 inches and weighs 5.7 lbs.
It features over voltage, over-temperature, and short circuit protection.
