This document provides specifications and features of the 382260 80W Switching Mode DC Power Supply. The power supply offers constant voltage or current output with three selectable ranges. It features dual 4-digit LED displays, front/rear output terminals, remote sensing capability, compact slim tower housing, and lightweight portability.

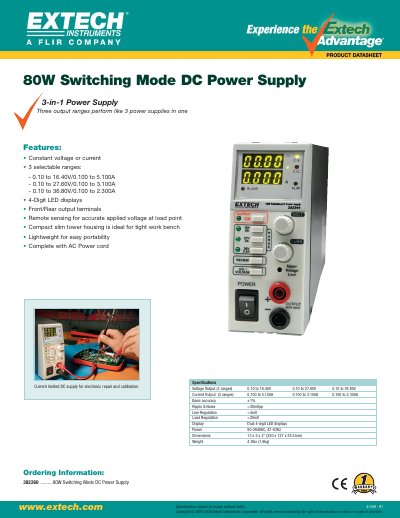

This document is a product datasheet for the EXTECH 382260 Switching Mode DC Power Supply. It describes a '3-in-1' unit that functions like three separate power supplies, offering constant voltage or current operation across three distinct output ranges: 0.10 to 16.40V/5.100A, 0.10 to 27.60V/3.100A, and 0.10 to 36.80V/2.300A.
The device features dual 4-digit LED displays, front and rear output terminals, and remote sensing capabilities for accurate voltage application at the load point. It is designed as a compact, slim tower housing suitable for tight work benches or portable use, powered by 90-264VAC.
| Power Rating | 80W |
|---|---|
| Output Range 1 | 0.10 to 16.40V / 0.100 to 5.100A |
| Output Range 2 | 0.10 to 27.60V / 0.100 to 3.100A |
| Output Range 3 | 0.10 to 36.80V / 0.100 to 2.300A |
| Basic Accuracy | +1% |
| Ripple & Noise | <30mVpp |
| Line Regulation | <4mV |
| Load Regulation | <20mV |
| Display Type | Dual 4-digit LED displays |
| Input Voltage | 90-264VAC; 47-63Hz |
| Dimensions | 13 x 5 x 2" (330 x 127 x 53.5mm) |
| Weight | 4.2 lbs (1.9kg) |
It is a current limited DC supply intended for electronic repair and calibration.
The ranges are 0.10 to 16.40V/0.100 to 5.100A, 0.10 to 27.60V/0.100 to 3.100A, and 0.10 to 36.80V/0.100 to 2.300A.
The unit measures 13x 5x 2" (330 x 127 x 53.5mm) and weighs 4.2Ibs (1.9kg).
