Introduces the features of Extech DC Regulated Power Supply 382200 and 382202, including model, output voltage, output current, accuracy, dimensions, weight, etc.

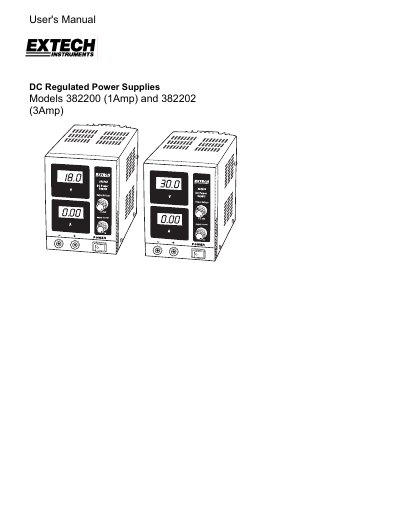

This manual provides instructions for the Extech DC Regulated Power Supplies, Models 382200 and 382202. These solid-state, compact units are designed for bench testing, field service, hobby, and telecommunication equipment use. The document details the specifications for both models, including voltage and current output ranges, accuracy, and physical dimensions.
| Voltage Output, DC | 30.0 Volts (382200) / 18.0 Volts (382202) |
|---|---|
| Current Output, DC | 0 – 1.00 Amp (382200) / 0 – 3.00 Amps (382202) |
| Ripple and Noise | <0.5mV/<3mA |
| Line Regulation | < 0.01% + 3mV/< 0.2% + 3mA |
| Power | 110/220VAC (50/60Hz) |
| Dimensions | 9.4 x 4.25 x 6" (240 x 108 x 154mm) (WxHxD) |
Extech warrants the basic instrument to be free of defects in parts and workmanship for one year from date of shipment.
Technical support is available at (781) 890-7440, Extension 200, or via email at [email protected].
Before turning the power supply ON, remove any load and set the Voltage and Current Adjustment Knobs to their full counter-clockwise positions.
