This document describes the adjustable 30V/1A and 18V/3A digital single output DC power supplies released by Extech Instruments Corporation in 2008. The product features constant voltage or current output, dual backlit LCD displays for voltage and current, short circuit protection, current limiting, high load/line regulation, low noise/ripple, etc.

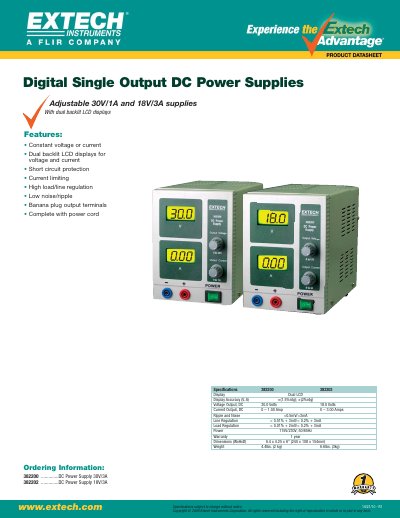

The document is a product datasheet for EXTECH Digital Single Output DC Power Supplies. It covers two specific models: the 382200 with an adjustable 30V/1A output and the 382202 with an adjustable 18V/3A output. Both units feature dual backlit LCD displays for voltage and current monitoring.
| Model 382200 Voltage Range | Adjustable 30.0 Volts |
|---|---|
| Model 382200 Current Range | 0-1.00 Amp |
| Ripple and Noise (Model 382200) | <0.5mv/<3mA |
| Line Regulation (Model 382200) | < 0.01% + 3mV |
| Load Regulation (Model 382200) | < 0.01% + AMV |
The 382200 model provides an adjustable output of up to 30.0 Volts at a maximum of 1.00 Amp.
The 382200 weighs 4.4lbs (2 kg) and the 382202 weighs 6.6lbs (3kg).
