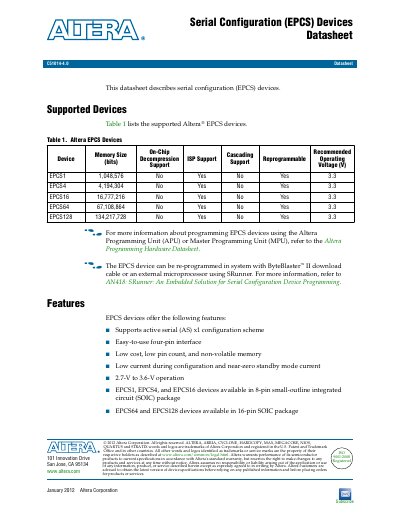

Altera EPCS devices datasheet, which introduces the support list of Altera EPCS devices and programming information
This datasheet provides technical information for Altera Serial Configuration (EPCS) devices, including the EPCS1, EPCS4, EPCS16, EPCS64, and EPCS128 models. It details supported features such as active serial (AS) x1 configuration, in-system programming (ISP) support, and non-volatile memory capabilities operating at 2.7V to 3.6V.
| Operating Voltage | 2.7-V to 3.6-V |
|---|---|
| EPCS1 Memory Capacity | 1,048,576 bits |
| EPCS4 Memory Capacity | 4,194,304 bits |
| EPCS16 Memory Capacity | 16,777,216 bits |
| EPCS64 Memory Capacity | 67,108,864 bits |
| EPCS128 Memory Capacity | 134,217,728 bits |
| Erase/Program Cycles | More than 100,000 |
No, EPCS devices cannot be cascaded.
The standby mode current is near-zero.
