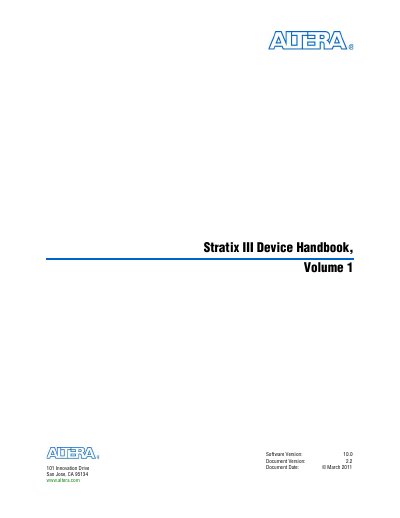

Altera Stratix III Device Handbook Volume 1

About this manual

This document serves as a comprehensive technical reference for the Stratix III device family. It details the internal architecture including Logic Array Blocks (LABs), Adaptive Logic Modules (ALMs), and MultiTrack interconnect structures essential for FPGA design.

The handbook provides in-depth information on embedded resources such as TriMatrix memory blocks, DSP blocks supporting various multiplier modes, and clock networks with Phase-Locked Loops (PLLs). It also covers high-speed I/O interfaces, configuration methods, and design security features specific to Stratix III technology.

What's inside

• Device Core
• Logic Array Blocks and Adaptive Logic Modules
• MultiTrack Interconnect
• TriMatrix Embedded Memory Blocks
• DSP Blocks
• Clock Networks and PLLs
• I/O Banks and I/O Structure
• External Memory Interfaces

Specifications

Frequently asked questions

What software version is required for this handbook?

This document applies to Software Version 10.0.

When was the content of this handbook published?

The document date listed in the text is March 2011.
