The document provides specifications and features of the DA50 Telescoping AC Current Detector. The product features non-contact detection of AC current, a telescoping probe, sensitivity adjustment, and LED indicators.

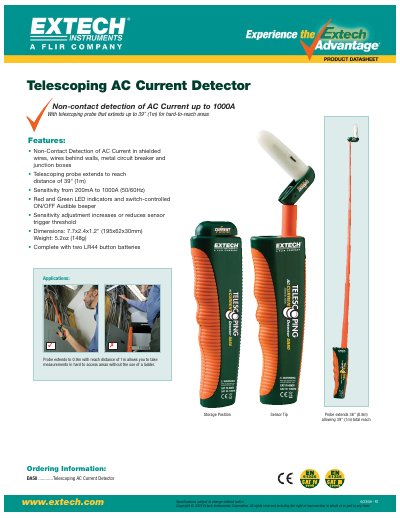

The document is a product datasheet for the EXTECH DA50 Telescoping AC Current Detector. It highlights key features such as non-contact detection in shielded wires, metal circuit breakers, and junction boxes. The device includes red and green LED indicators, an audible beeper controlled by a switch, and adjustable sensitivity.
| Current Sensitivity Range | 200mA to 1000A (50/60Hz) |
|---|---|
| Probe Extension Length | 39" (1m) |
| Dimensions | 7.7x2.4x1.2" (195x62x30mm) |
| Weight | 5.2oz (148g) |
The detector can detect non-contact AC current up to 1000A.
The probe extends up to 39 inches, which is 1 meter.
The sensitivity ranges from 200mA to 1000A at 50/60Hz.
