The Continuity Tester Pro is a professional instrument for wire and cable testing. It uses a 20mA DC current pulse to drive two probes and measure the continuity of wires or cables. It can identify up to three wires or cables at a time and display red or green LED indicators at the other end to indicate the connection status.

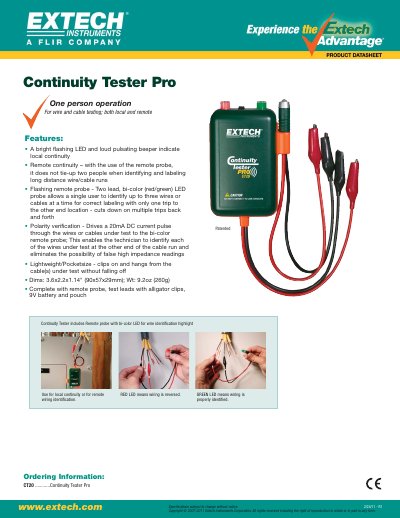

The EXTECH CT20 is a Continuity Tester Pro designed for one-person operation on wire and cable testing. It features a bright flashing LED and loud pulsating beeper to indicate local continuity.
For remote identification, the device uses a two-lead bi-color (red/green) LED probe. This allows a single user to identify up to three wires or cables at a time for correct labeling without multiple trips. The system drives a 20mA DC current pulse through the wires to verify polarity and eliminate false high impedance readings.
| Operation Mode | One person operation |
|---|---|
| Application | For wire and cable testing; both local and remote |
| Remote Probe Type | Two lead, bi-color (red/green) LED probe |
| Wire Identification Capacity | Up to three wires or cables at a time |
| Current Pulse for Polarity | 20mA DC current pulse |
| Dimensions | 3.6x2.2x1.14" (90x57x29mm) |
| Weight | 9.20z (260g) |
It is designed for one-person operation to test wire and cable continuity, both locally and remotely.
The bi-color LED probe allows a single user to identify up to three wires or cables at a time.
The device drives a 20mA DC current pulse through the wires or cables under test.
