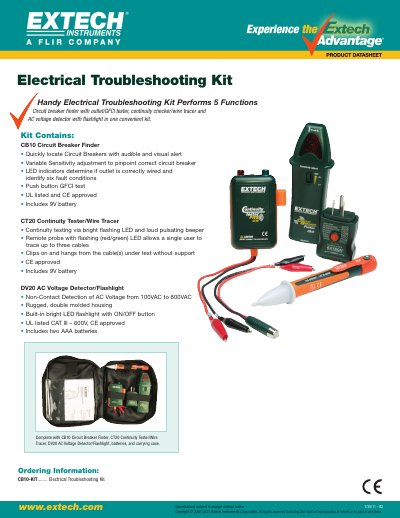

The document provides ordering information and specifications for the CB10-KIT electrical troubleshooting kit from Extech Instruments Corporation. The kit includes the CB10 circuit breaker finder, CT20 continuity tester/wire tracer, DV20 AC voltage detector/flashlight, batteries, and a carrying case. Each tool has different functions and features.
The document describes the Extech CB10-KIT Electrical Troubleshooting Kit. This handy kit combines three specific tools: the CB10 Circuit Breaker Finder, the CT20 Continuity Tester/Wire Tracer, and the DV20 AC Voltage Detector/Flashlight.
Each component is detailed with its specific functions and features. The CB10 allows for quick location of circuit breakers using audible and visual alerts, includes variable sensitivity adjustment, LED indicators for outlet wiring verification, a GFCI test button, and comes UL listed and CE approved. The CT20 performs continuity testing via a bright flashing LED and loud beeper, features a remote probe with red/green LEDs to trace up to three cables, clips onto the cable under test without support, is CE approved, and includes a 9V battery. The DV20 provides non-contact detection of AC voltage from 100VAC to 600VAC, has a rugged double-molded housing, a built-in bright LED flashlight with an ON/OFF button, is UL listed CAT III–600V and CE approved, and includes two AAA batteries.
The kit contains the CB10 Circuit Breaker Finder, CT20 Continuity Tester/Wire Tracer, DV20 AC Voltage Detector/Flashlight, batteries, and a carrying case.
The DV20 AC Voltage Detector detects non-contact AC voltage from 100VAC to 600VAC.
The CT20 Continuity Tester/Wire Tracer includes one 9V battery.
