The Extech 412400 Multifunction Calibrator provides 0 to 24mA current and 0 to 10V voltage output, and measures 0 to 50mA current and 0 to 19.99V voltage. It can provide precision source and measurement for thermocouples (Types J, K, and T), mA, mV, and V devices.

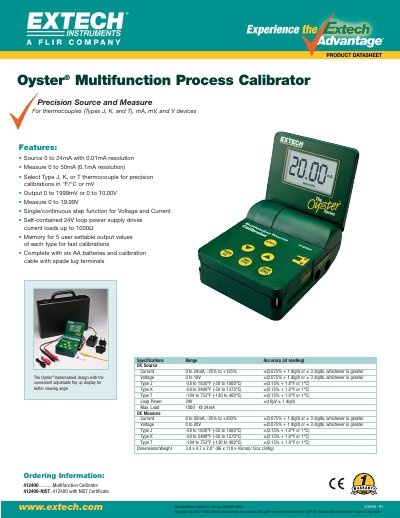

This document is a product datasheet for the EXTECH 412400 Oyster Multifunction Process Calibrator. It describes the instrument as a precision source and measure device for thermocouples (Types J, K, and T), mA, mV, and V devices. The device features a self-contained 24V loop power supply and includes memory for five user-settable output values.
| Current Source Range | 0 to 24mA |
|---|---|
| Current Measure Range | 0 to 50mA |
| Voltage Source Range | 0 to 10.00V |
| Voltage Measure Range | 0 to 19.99V |
| Loop Power Supply | 24V |
| Max Load | 1000 @24mA |
| Memory Capacity | 5 user settable output values |
| Dimensions | 3.8 x 4.7 x 2.0" (96 x 118 x 45mm) |
| Weight | 12oz (340g) |
The instrument can source a direct current from 0 to 24mA.
The unit can output a voltage ranging from 0 to 10.00V.
The self-contained 24V loop power supply drives current loads up to 1000Ω.
