Extech HD300 / HD300-NIST Digital Thermo-Anemometer with IR Temperature has a wireless Infrared thermometer that measures -58 to 932°F (-50 to 500°C) of remote surface temperatures. It also can simultaneously display CFM/CMM or Air Velocity plus Ambient Temperature.

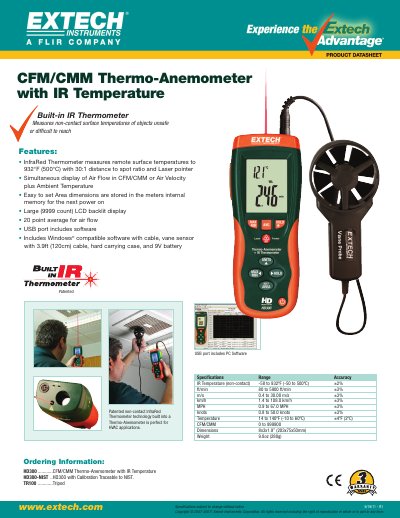

The document describes the EXTECH HD300 CFM/CMM Thermo-Anemometer with IR Temperature. This device features a built-in infrared thermometer for measuring remote surface temperatures up to 932°F (500°C) using a laser pointer and a 30:1 distance-to-spot ratio.
The instrument simultaneously displays air flow in CFM or CMM, air velocity, and ambient temperature. It includes an easy-to-set area dimension feature stored in internal memory, a large backlit LCD display capable of showing up to 9999 counts, and a USB port for connecting PC software.
| IR Temperature Range | -58 to 932°F (-50 to 500°C) |
|---|---|
| Air Flow Range | 80 to 5900 ft/min |
| Air Velocity Range (m/s) | 0.4 to 30.00 m/s |
| Ambient Temperature Range | 14 to 140°F (-10 to 60°C) |
| Display Capacity | 9999 count |
| Dimensions | 8x3x1.9 inches |
| Weight | 9.8 oz (280g) |
The built-in infrared thermometer measures non-contact surface temperatures up to 932°F (500°C).
The product measures 8x3x1.9 inches, or 203x75x50mm.
