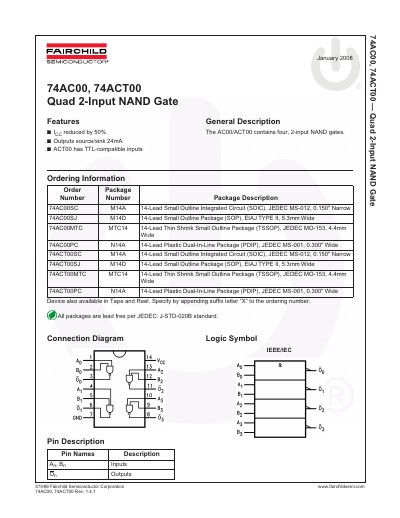

Fairchild Semiconductor 74AC00, 74ACT00 Quad 2-Input NAND Gate Datasheet

This document describes the features and characteristics of the 74AC00 and 74ACT00 products, including a 50% reduction in ICC, outputs sourcing/sinking 24mA, and TTL-compatible inputs for ACT00.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 10
File format: PDF
File size: 302 KB
Published: 01 August, 2012
Updated: 29 September, 2023
MD5 checksum: 72C7206F45945FA21A8F5AB261F77A07
PDF: Fairchild Semiconductor 74AC00, 74ACT00 Quad 2-Input NAND Gate Datasheet PDF

About this manual

The document describes the 74AC00 and 74ACT00 devices, which contain four 2-input NAND gates. The 74ACT00 variant features TTL-compatible inputs. The device is available in various packages including SOIC, SOP, TSSOP, and PDIP.

What's inside

Features
Ordering Information
Connection Diagram
Pin Description
Absolute Maximum Ratings
DC Electrical Characteristics
AC Electrical Characteristics
Physical Dimensions

Specifications

Output Current	24mA
Operating Temperature	-40°C to +85°C
Package Types	SOIC, SOP, TSSOP, PDIP

Frequently asked questions

What is the maximum output current?

The outputs can source or sink 24mA.

What is the maximum supply voltage for the 74AC00 and 74ACT00 devices?

The absolute maximum supply voltage rating is +7.0V, while the recommended operating range for AC devices is 2.0V to 6.0V.

What is the maximum operating temperature for these devices?

The recommended operating temperature range is from -40°C to +85°C.

What is the maximum output current the device can source or sink?

The device can source or sink a maximum of +50mA of output current.
