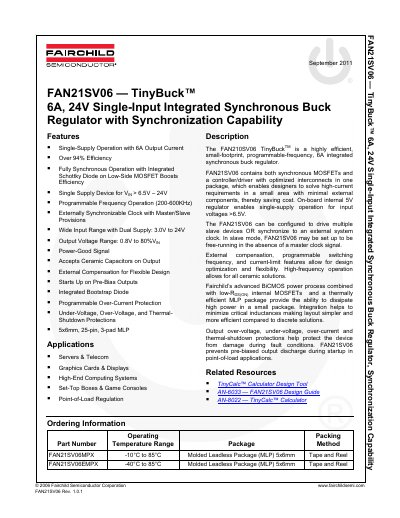

The FAN21SV06 is a highly efficient, small-footprint, programmable-frequency, 6A integrated synchronous buck regulator.
The FAN21SV06 is a highly efficient, small-footprint programmable-frequency 6A integrated synchronous buck regulator designed for servers, telecom, graphics cards, and other high-end computing systems. It features fully synchronous operation with an integrated Schottky diode on the low-side MOSFET to boost efficiency.
The device supports single-supply operation for input voltages greater than 6.5V up to 24V and includes programmable frequency operation ranging from 200kHz to 600kHz. It offers master/slave synchronization provisions, allowing it to synchronize with an external system clock or operate as a free-running slave. The regulator incorporates comprehensive protection features including over-current, under-voltage, over-voltage, and thermal shutdown protections.
| Output Current | 6A |
|---|---|
| Efficiency | Over 94% |
| Input Voltage Range | 3.0V to 24V |
| Output Voltage Range | 0.8V to 80%Vi |
| Switching Frequency Range | 200-600KHz |
| Package Type | 5x6mm, 25-pin MLP |
| Operating Temperature Range (Standard) | -10°C to +85°C |
The device supports a single-supply operation with an output current of 6A.
Yes, it features programmable frequency operation ranging from 200kHz to 600kHz.
Yes, it has externally synchronizable clock provisions with master/slave capabilities.
