The FAN2108 is a highly efficient, small footprint, 8A synchronous buck regulator with features such as wide input voltage range, programmable frequency operation, and integrated Schottky diode.

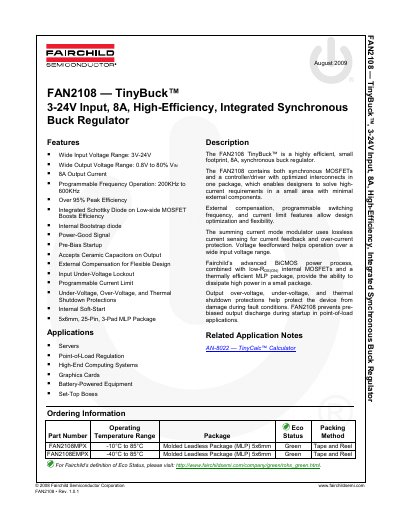

The FAN2108 TinyBuck is a highly efficient, small-footprint synchronous buck regulator designed for applications requiring high current in a minimal area. It integrates both synchronous MOSFETs and a controller/driver with optimized interconnects to solve high-current requirements while minimizing external components.
Key features include a wide input voltage range of 3V to 24V, an output current capability of up to 8A, and peak efficiency exceeding 95%. The device offers programmable switching frequency (200kHz to 600kHz) and includes comprehensive protection mechanisms such as under-voltage lockout, over-voltage shutdown, thermal shutdown, and a power-good signal.
| Input Voltage Range | 3V to 24V |
|---|---|
| Output Current | 8A |
| Switching Frequency Range | 200KHz to 600KHz |
| Peak Efficiency | Over 95% |
| Package Type | 5x6mm, 25-Pin, 3-Pad MLP |
| Bias Voltage (VCC) | 4.5V to 5.0V |
The device accepts an input voltage ranging from 3V to 24V.
Yes, it includes a Power-Good Signal feature to indicate proper output voltage.
The recommended maximum junction temperature (Tj) is +125°C.
