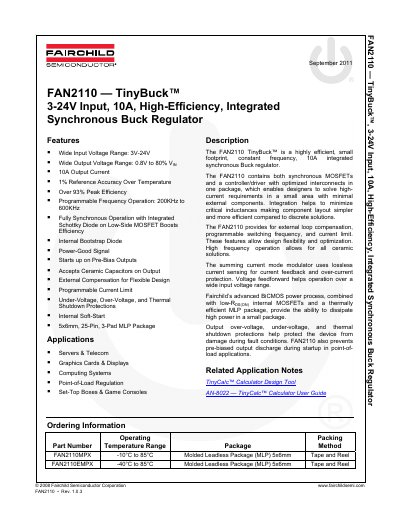

FAN2110 is a high-efficiency, small-footprint, constant-frequency, 10A integrated synchronous Buck regulator from Fairchild Semiconductor.
The FAN2110 TinyBuck is a highly efficient, small footprint, constant frequency, 10A integrated synchronous buck regulator designed for high-current requirements in a small area. It contains both synchronous MOSFETs and a controller/driver in one package, enabling simplified component layout and minimal external components.
| Input Voltage Range | 3V to 24V |
|---|---|
| Output Current | 10A |
| Output Voltage Range | 0.8V to 80% Vin |
| Peak Efficiency | Over 93% |
| Switching Frequency Range | 200KHz to 600KHz |
| Package Type | 5x6mm, 25-Pin, 3-Pad MLP |
| Operating Temperature (MPX) | -10°C to 85°C |
| Operating Temperature (EMPX) | -40°C to 85°C |
The device is suitable for servers, telecom, graphics cards, displays, computing systems, point-of-load regulation, set-top boxes, and game consoles.
Yes, it includes under-voltage, over-voltage, and thermal shutdown protections to protect the device from damage during fault conditions.
Yes, the device accepts ceramic capacitors on the output and allows for all ceramic solutions due to high frequency operation.
