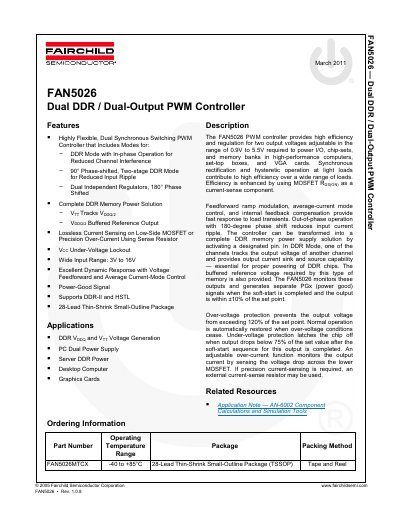

The FAN5026 is a dual DDR / dual-output PWM controller that provides high efficiency and regulation for powering I/O, chip-sets, and memory banks in high-performance computers, set-top boxes, and VGA cards. It features DDR mode, two independent regulators, wide input range, and supports DDR-II and HSTL.
The FAN5026 is a highly flexible, dual synchronous switching PWM controller designed for generating Vppa and Vr voltages required to power I/O, chip-sets, and memory banks in high-performance computers, set-top boxes, and graphics cards. It supports various operating modes including DDR Mode with in-phase operation, 90° phase-shifted two-stage DDR mode, and dual independent regulators with 180° phase shift.
| Input Voltage Range | 3V to 16V |
|---|---|
| Output Voltage Range | 0.9V to 5.5V |
| Operating Temperature | -40°C to +85°C |
| Package Type | 28-Lead Thin-Shrink Small-Outline Package (TSSOP) |
| Oscillator Frequency | 255 kHz to 345 kHz |
| Internal Reference Voltage | 0.900V |
The controller supports a wide input range from 3V to 16V.
The device is available in a 28-Lead Thin-Shrink Small-Outline Package (TSSOP).
The recommended operating ambient temperature range is -40°C to +85°C.
